Carbon
AP Services, a product and service brand of Curtiss-Wright, is a manufacturer and integrated supplier of mechanical valve and pump packing, metal and fabricated gaskets, and a wide variety of specialized fluid sealing products for use in the power generation, chemical, pulp & paper, and refining industries.
.
Models
.
AP STYLE 536

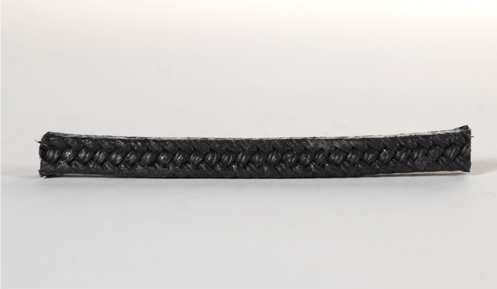

AP Services, a product and service brand of Curtiss-Wright, manufactures valve and pump packing products that have the lowest leak rates and friction in the industry. Style 536 is braided from high quality carbon yarn heavily impregnated with PTFE dispersion. Each strand is individually coated with PTFE by a unique process, which controls and evenly distributes the lubricant. Once braided, the complete packing strand is once again coated with PTFE. This combination provides low friction packing whose sealing abilities exceed asbestos-PTFE packing’s. Style 536 offers long life and low shaft sleeve wear.
Style 536 is engineered to withstand acids, hot oils, alkalis, and steam on gate, globe and ball valve stems. It is also an excellent choice for use in agitators, mixers, and pumps with rotating or reciprocating shafts. Style 536 is available as individual rings, combination sets, and in bulk.
| Maximum Temperature | 600 ºF |
| Maximum Pressure | 500 psi |
| Maximum Shaft Speed | 2,800 FPM |
| Ph Range | 0-14 |
| Construction | Lattice Braid |
| Size | 1/8 | 3/16 | 1/4 | 5/16 | 3/8 | 7/16 | 1/2 | 9/16 | 5/8 | 3/4 | 7/8 | 1 |
| ft./lb. | 72 | 45 | 21 | 17 | 12 | 9 | 7.5 | 5.5 | 4.6 | 3.2 | 2.1 | 1.8 |
