Ringo Gate Valves

With over 30 years of experience in the valve industry, Ringo has attained success and recognition by providing only the highest level of valve technology. Available in a variety of sizes, valve types, and materials, Ringo valves provide a wide range of solutions to any problem.

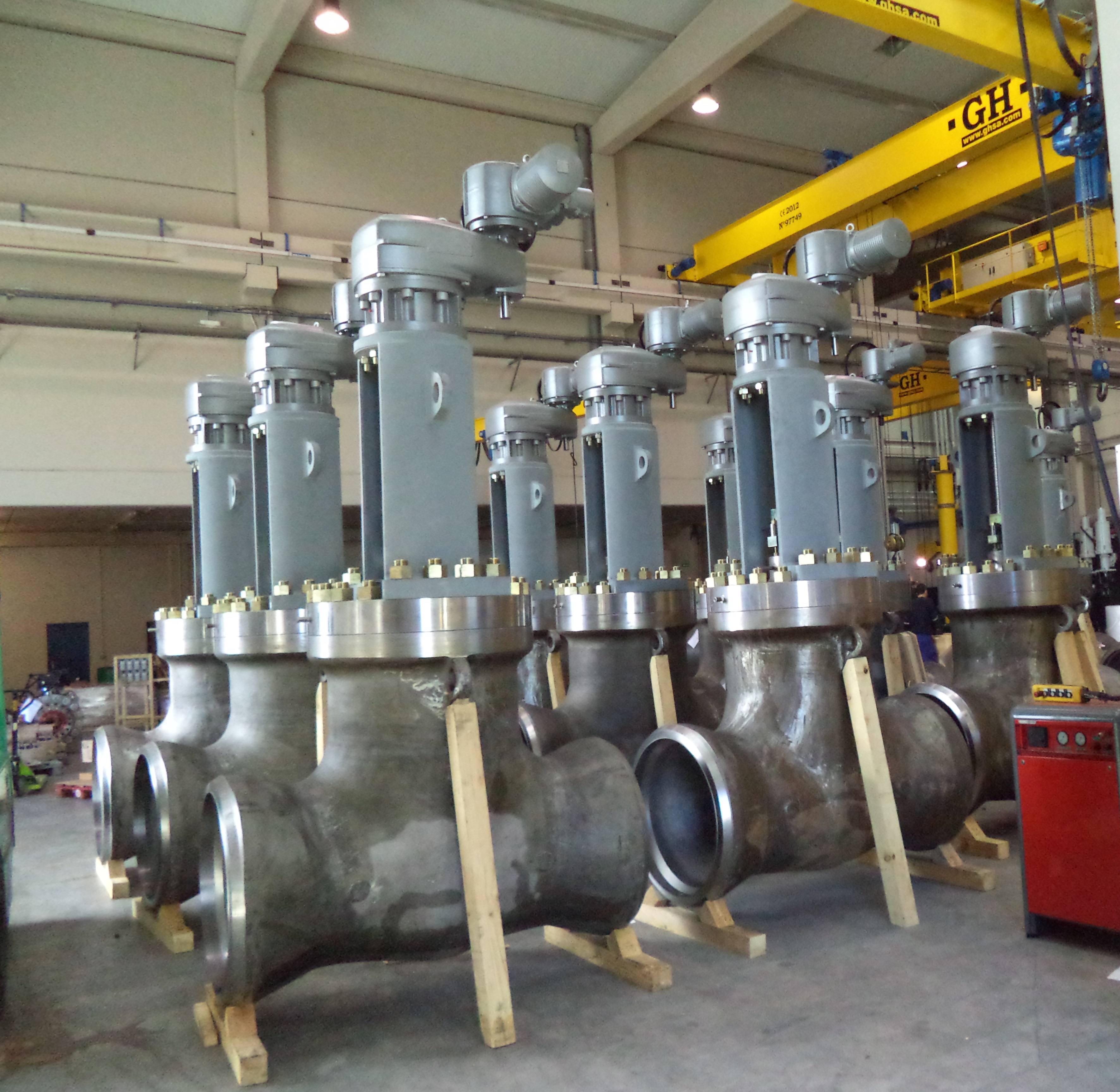

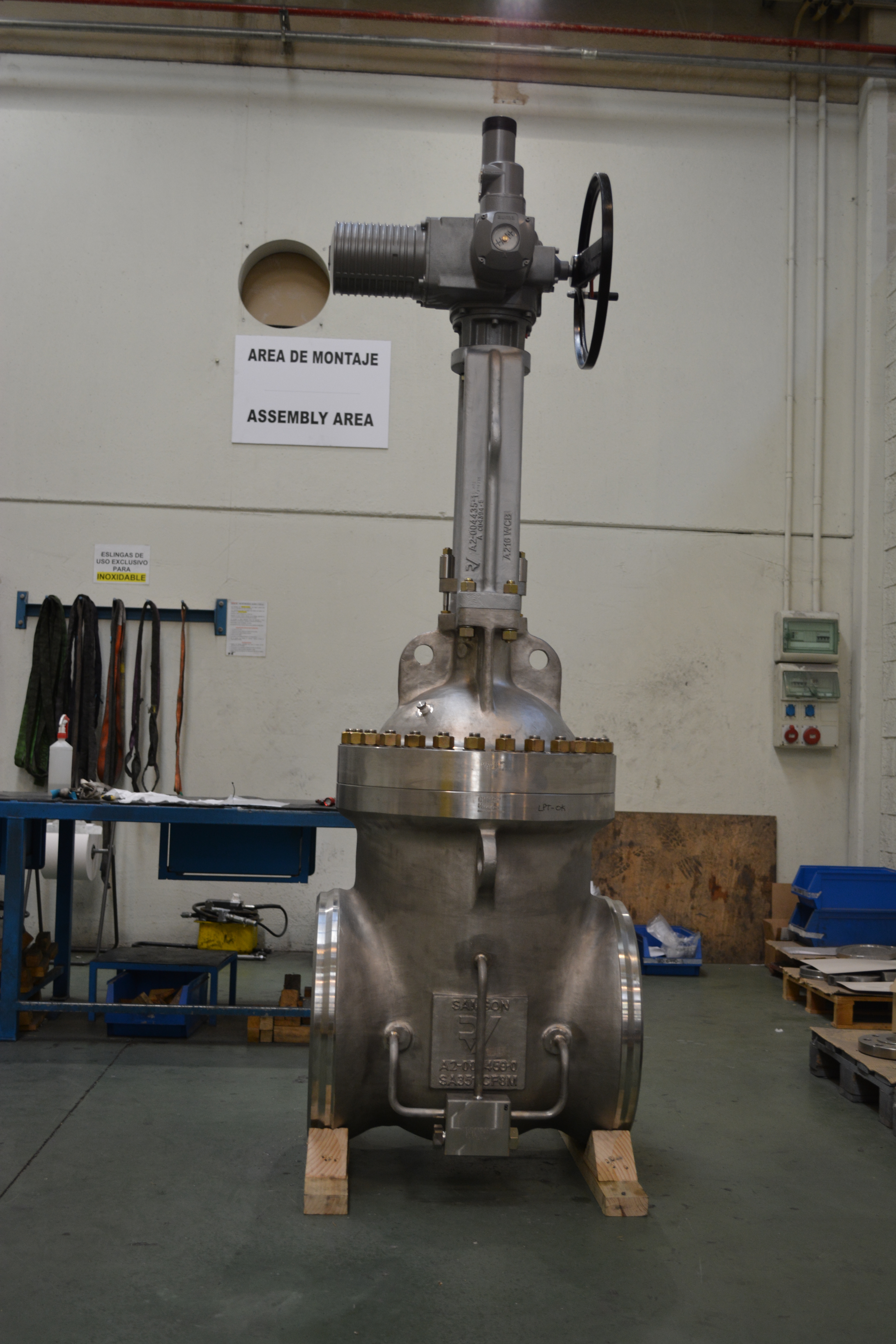

Wedge Gate Valves

Curtiss-Wright has partnered with Ringo Valves to provide the US nuclear power market with gate valves. Located in Zaragoza, Spain, Ringo valves has designed and manufactured their cast and forged valves for over 30 years. Their high QA standards, including ANSI and ASME, make them an international leader in the valve industry, and Ringo prides itself on providing only the highest level of valve technology. Available in a variety of sizes, valve types, and materials, Ringo valves provide a wide range of solutions to any problem.

Using a wedge to mitigate flow, Wedge Gate Valves utilize upstream pressure to push a wedge piece against the downstream seat, creating a seal. Curtiss-Wright provides Ringo's Solid Wedge, Flexible Wedge, and Split Wedge designs for nuclear applications.

Key Features and Benefits

OS&Y / Backseat

Wedge Gate / Through Conduit / Double Expanding

Bolted Bonnet / Pressure Seal Construction

Manual / MOV / HOV / AOV / Electrohydraulic Operation

Optional Features

Lantern Ring

Equalizer

Locking Device

Stem Extention

Leak-Off and Packing Expulsor

Low Emission Packing

Non-Rising Stem

Bellows Seal Gate

General Specifications

Size:	1/2" - 72"
Ratings:	ANSI Pressure Class 150 to 4500
Quality Class:	Commercial, Safety-Related, ASME Code, Class 1, 2, 3

Materials

Carbon Steel
Low Temperature Carbon Steel
High Temperature Alloy Steel
Stainless Steel
Super Austenistic Stainless Steel
Duplex Stainless Steel
Super Duplex Stainless Steel
Ni Alloy
Titanium
Aluminium Bronze

Typical Plant Applications

Auxiliary Feedwater Steam Supply System
RCIC Turbine Exhaust
Pressure Boundary/Containment Isolation
Safety Injection System
Instrument Air Systems
Tank/vessel vacuum protection
High Energy Line Breakage Isolation
GL 89-04 Safety Related Applications

Parallel Gate Valves

Curtiss-Wright has partnered with Ringo Valves to provide the US nuclear power market with gate valves. Located in Zaragoza, Spain, Ringo valves has designed and manufactured their cast and forged valves for over 30 years in nuclear applications. Their high QA standards, including ANSI and ASME, make them an international leader in the valve industry, and Ringo prides itself on only providing only the highest level of valve technology. Available in a variety of sizes, valve types, and materials, Ringo valves provide a wide range of solutions to any problem.

Ideal for applications with large temperature variations or that require fast shut off, Parallel Gate Valves are designed with parallel seats, allowing the disc to have no contact with the seats until the end of the valve stroke. Curtiss-Wright provides Ringo's Slide, Through Conduit, and Double Expanding Parallel Gate designs for nuclear applications such as Main Steam and Main Feedwater Isolation.
