Tape
AP Services, a product and service brand of Curtiss-Wright, is a manufacturer and integrated supplier of a wide variety of specialized fluid sealing products for use in the power generation, chemical, pulp & paper, and refining industries.
.
Models
.

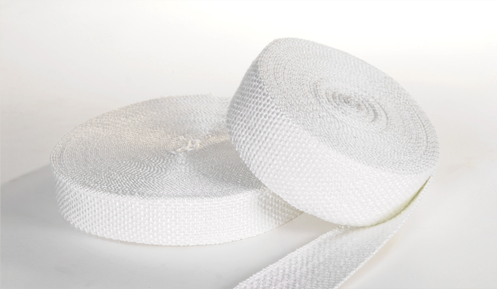

AP STYLE 930/931
Style 930 is a textured fiberglass yarn woven into a gasket tape of uniform width and thickness. Style 930 is suitable for doors and lids as well as an insulation material. Style 931 is the same as Style 930, but is woven with a loose center weave to allow for easy insertion of bolts saving valuable maintenance time. Style 931 is suitable for doors and lids as well as an insulation material.
Recommended Uses
For use on doors and lids as well as an insulation material.
Maximum Temperature | 1,000 ºF |
Standard Thickness | 1/16” through ¼” |
Standard Width | 1” through 5” |
Standard Length | 50 ft. and 100 ft. rolls pending upon thickness |

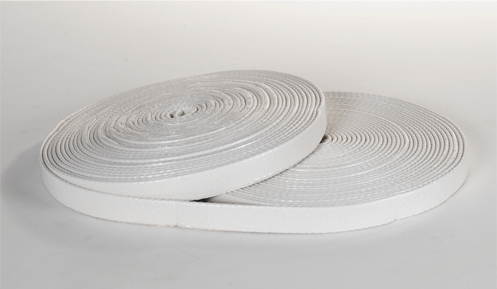

AP STYLE 933
Style 933 is a textured fiberglass yarn, woven into a fiberglass cloth, treated with a heat resistant compound and folded into a required width and thickness.
Recommended Uses
For use on doors, ducts, lids, vats, and vessels even with light bolt loading.
Maximum Temperature | 500 ºF |
Maximum Temperature | 500 ºF |

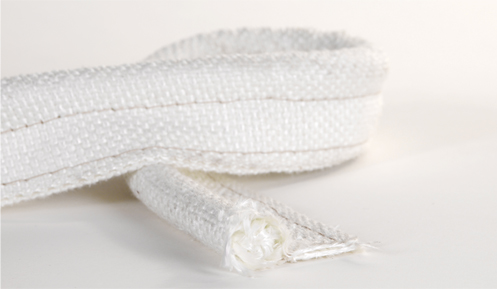

AP STYLE 941
Style 941 is manufactured from rubberized fiberglass cloth, folded over a fiberglass rope core, and cemented to form a bulb and tail structure. This construction allows the tape to be used as a high temperature O-ring held in place by a fabric tail assembly.
Recommended Uses
For use on furnace doors, structural seams and precipitator equipment.
Maximum Temperature | 500 ºF for rubberized 1,000 ºF for dry fiberglass |
Standard Bulb | 3/8” diameter and up |
Overall Width | 1” and up |
To request for more information click here
