Nuclear Turbine Main Steam Flange Gasket Failure due to Radial Buckling

Problem

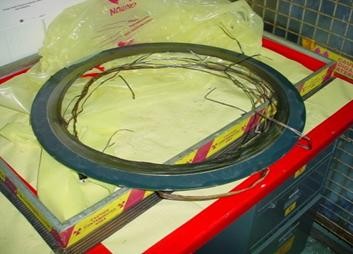

Spiral Wound gaskets made from 316SS winding with graphite filler were buckled and pieces were found in the turbine.

Solution

Gaskets were upgraded to a spiral wound with an inner retaining ring (Style CGI) and winding material was changed to Inconnel X750HT to provide additional recovery capability.
